Home » ECAT » Motorcycle, ATV & UTE » Brake Discs » e-cat

ONLINE CATALOGUE (E-CAT)

DISCOVER OUR ONLINE CATALOGUE

BACK
NEW SEARCH

FMD0451R

Standard one-piece disc

available

REAR
DIMENSIONS mm
A
282
B
132
C
5
D
5
E
10.75
F
165
REAR
DIMENSIONS mm
A
282
B
132
C
5
D
5
E
10.75
F
165

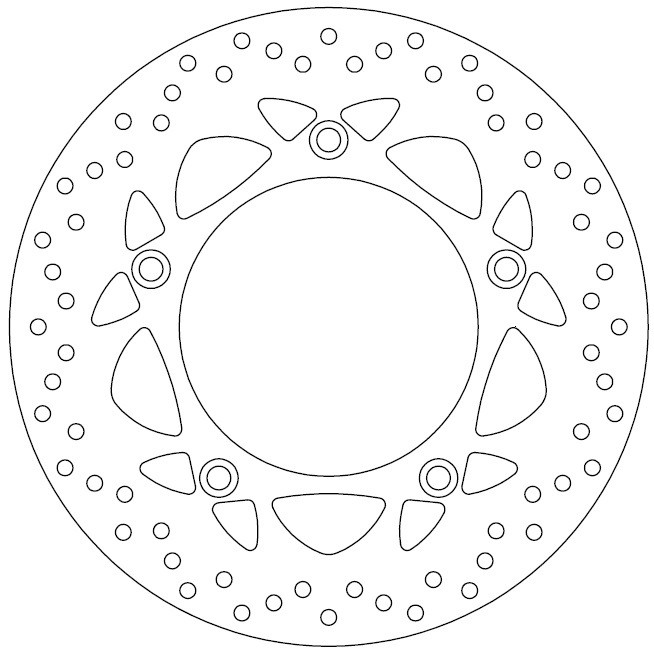

SHAPE
FMD0451
Suffix

R

DISCOVER

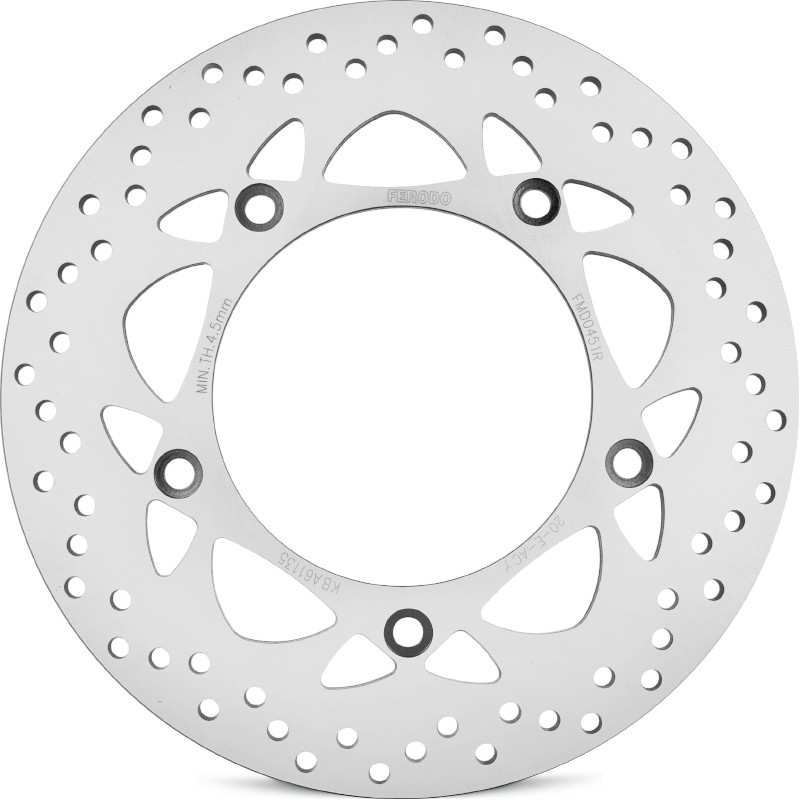

Standard, steel one-piece fixed disc

MODEL
CC
KW
FROM > TO
F/R
CODE
# SET
SIDE
TMAX 530 (SJ09)
530
34
2012 > 2016
FRONT
FMD0437
2

MODEL: TMAX 530 (SJ09)
CC: 530
KW: 34
FROM > TO: 2012 > 2016
FRONT / REAR: front
CODE: FMD0437
NUM SET: 2

DISCOVER

TMAX 530 (SJ09)
530
34
2012 > 2016
REAR
FMD0451
1

MODEL: TMAX 530 (SJ09)
CC: 530
KW: 34
FROM > TO: 2012 > 2016
FRONT / REAR: rear
CODE: FMD0451
NUM SET: 1

DISCOVER

TMAX 530 ABS
530
2012 > 2019
FRONT
FMD0437
2

MODEL: TMAX 530 ABS
CC: 530
FROM > TO: 2012 > 2019
FRONT / REAR: front
CODE: FMD0437
NUM SET: 2

DISCOVER

TMAX 530 ABS
530
2012 > 2019
REAR
FMD0451
1

MODEL: TMAX 530 ABS
CC: 530
FROM > TO: 2012 > 2019
FRONT / REAR: rear
CODE: FMD0451
NUM SET: 1

DISCOVER

TMAX 530 DX ABS (SJ145)
530
33.8
2017 > 2020
FRONT
FMD0437
2

MODEL: TMAX 530 DX ABS
CC: 530
KW: 33.8
FROM > TO: 2017 > 2020
FRONT / REAR: front
CODE: FMD0437
NUM SET: 2

DISCOVER

TMAX 530 DX ABS (SJ145)
530
33.8
2017 > 2020
REAR
FMD0451
1

MODEL: TMAX 530 DX ABS
CC: 530
KW: 33.8
FROM > TO: 2017 > 2020
FRONT / REAR: rear
CODE: FMD0451
NUM SET: 1

DISCOVER

TMAX 530 Iron Max ABS
530
34
2015 > 2015
FRONT
FMD0437
2

MODEL: TMAX 530 Iron Max ABS
CC: 530
KW: 34
FROM > TO: 2015 > 2015
FRONT / REAR: front
CODE: FMD0437
NUM SET: 2

DISCOVER

TMAX 530 Iron Max ABS
530
34
2015 > 2015
REAR
FMD0451
1

MODEL: TMAX 530 Iron Max ABS
CC: 530
KW: 34
FROM > TO: 2015 > 2015
FRONT / REAR: rear
CODE: FMD0451
NUM SET: 1

DISCOVER

TMAX 530 LUX MAX ABS
530
2016 > 2016
FRONT
FMD0437
2

MODEL: TMAX 530 LUX MAX ABS
CC: 530
FROM > TO: 2016 > 2016
FRONT / REAR: front
CODE: FMD0437
NUM SET: 2

DISCOVER

TMAX 530 LUX MAX ABS
530
2016 > 2016
REAR
FMD0451
1

MODEL: TMAX 530 LUX MAX ABS
CC: 530
FROM > TO: 2016 > 2016
FRONT / REAR: rear
CODE: FMD0451
NUM SET: 1

DISCOVER

TMAX 530 SX ABS (SJ14)
530
34
2017 > 2020
FRONT
FMD0437
2

MODEL: TMAX 530 SX ABS
CC: 530
KW: 34
FROM > TO: 2017 > 2020
FRONT / REAR: front
CODE: FMD0437
NUM SET: 2

DISCOVER

TMAX 530 SX ABS (SJ14)
530
34
2017 > 2020
REAR
FMD0451
1

MODEL: TMAX 530 SX ABS
CC: 530
KW: 34
FROM > TO: 2017 > 2020
FRONT / REAR: rear
CODE: FMD0451
NUM SET: 1

DISCOVER

TMAX 530 SX SPORT EDITION ABS
530
2018 > 2020
FRONT
FMD0437
2

MODEL: TMAX 530 SX SPORT EDITION ABS
CC: 530
FROM > TO: 2018 > 2020
FRONT / REAR: front
CODE: FMD0437
NUM SET: 2

DISCOVER

TMAX 530 SX SPORT EDITION ABS
530
2018 > 2020
REAR
FMD0451
1

MODEL: TMAX 530 SX SPORT EDITION ABS
CC: 530
FROM > TO: 2018 > 2020
FRONT / REAR: rear
CODE: FMD0451
NUM SET: 1

DISCOVER

TMAX 560 ABS (SJ181-SJ18D-SJ18F)
560
35
2020 > 2024
FRONT
FMD0437
2

MODEL: TMAX 560 ABS
CC: 560
KW: 35
FROM > TO: 2020 > 2024
FRONT / REAR: front
CODE: FMD0437
NUM SET: 2

DISCOVER

TMAX 560 ABS (SJ181-SJ18D-SJ18F)
560
35
2020 > 2024
REAR
FMD0451
1

MODEL: TMAX 560 ABS
CC: 560
KW: 35
FROM > TO: 2020 > 2024
FRONT / REAR: rear
CODE: FMD0451
NUM SET: 1

DISCOVER

TMAX 560 ABS TECH MAX (SJ184-SJ18G)
560
35
2020 > 2024
FRONT
FMD0437
2

MODEL: TMAX 560 ABS TECH MAX
CC: 560
KW: 35
FROM > TO: 2020 > 2024
FRONT / REAR: front
CODE: FMD0437
NUM SET: 2

DISCOVER

TMAX 560 ABS TECH MAX (SJ184-SJ18G)
560
35
2020 > 2024
REAR
FMD0451
1

MODEL: TMAX 560 ABS TECH MAX
CC: 560
KW: 35
FROM > TO: 2020 > 2024
FRONT / REAR: rear
CODE: FMD0451
NUM SET: 1

DISCOVER

BRAND
CODE
OEM Yamaha
59C2582W0000E
BRAND
CODE
BRAKING
RF8512
NEWFREN
DF4128 A
NG
1296
NG
1296X
